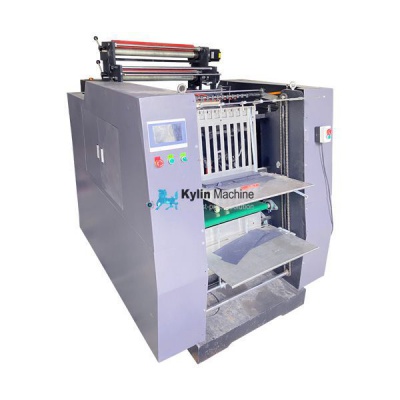

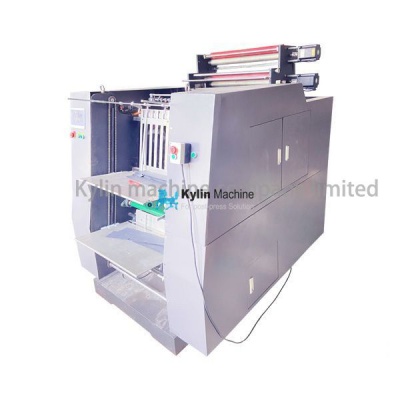

Auto feed die cutting&stamping machine

Auto feeder die cutting&stamping machine, working for 60-3,000gsm paper sheets, cardboards, leather, tissue paper, hard cover, film materials.

Price Interview

Price Interview

Auto feed die cutting&stamping machine

Interview

Select the number of specifications

Please check the product information you want!

Product Detail Inquiry Now! Online Video

Online Video


Auto feeder die cutting&stamping machine, working for 60-3,000gsm paper sheets, cardboards, leather, tissue paper, hard cover, film materials. Max sheet size: 464mm*290mm

Speed: 2,000pcs/hour Setting time for die cutting process: 3-5 mins Setting time for hot stamping process: 8-10mins Fully mechanical motion Three machines can be operated by one worker 100% safty operation 9 times working effection than the traditional die cutting machine


Specification:


Model: Ky-464

Machine size 1400*900*1600(mm)

Machine weight 1400kg

Power    3Kw

PLC control

Max sheets size 464mm*290mm


Max thickness 3000gsm

Min sheets size 60 gsm

Max running speed 35 cycles/min


No comment

Product Detail

Online Video


Auto feeder die cutting&stamping machine, working for 60-3,000gsm paper sheets, cardboards, leather, tissue paper, hard cover, film materials. Max sheet size: 464mm*290mm

Speed: 2,000pcs/hour Setting time for die cutting process: 3-5 mins Setting time for hot stamping process: 8-10mins Fully mechanical motion Three machines can be operated by one worker 100% safty operation 9 times working effection than the traditional die cutting machine


Specification:


Model: Ky-464

Machine size 1400*900*1600(mm)

Machine weight 1400kg

Power    3Kw

PLC control

Max sheets size 464mm*290mm


Max thickness 3000gsm

Min sheets size 60 gsm

Max running speed 35 cycles/min
