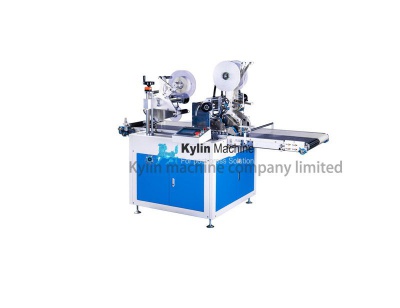

Double-side adhesive tape applicator for foldable box

Double-side adhesive tape applicator for foldable box

Price Interview

Price Interview

Double-side adhesive tape applicator for foldable box

Interview

Select the number of specifications

Please check the product information you want!

Product Detail Inquiry Online Video

Online video

1, It can work with three trilateral and one strip double-side adhesive tapes at the same time.


2, It is equipped with fibre optic sensor and servo control to achieve the accurate position.

3, Vaccuum suction on the conveyor belt to transfer stabler,and accurancy position

4, The human-mancine interface and touch screen makes the process of parameter settings much easier.

5, The length of strip double-side adhesive tape can be set on the tocuh screen.

6, Feeding by hand ,option easy , Its production efficience can achieve 40pcs/min.

7,It can be connected to the mechanical arm to finish the feeding with its building block design.

double-side adhesive tape machine

Specification
ModelKy-300SF
Max size of board sideL800*W200mm
Min size of board sideL100*W30mm
Tape Max sizeL170*W170mm
Tape Min sizeL30*W30mm
Power/Voltage2kw/AC220V
Speed20-40pcs/min
Machine Dimension2200*900*1600mm
Weight400KG


No comment

Product Detail

Online video

1, It can work with three trilateral and one strip double-side adhesive tapes at the same time.


2, It is equipped with fibre optic sensor and servo control to achieve the accurate position.

3, Vaccuum suction on the conveyor belt to transfer stabler,and accurancy position

4, The human-mancine interface and touch screen makes the process of parameter settings much easier.

5, The length of strip double-side adhesive tape can be set on the tocuh screen.

6, Feeding by hand ,option easy , Its production efficience can achieve 40pcs/min.

7,It can be connected to the mechanical arm to finish the feeding with its building block design.

double-side adhesive tape machine

Specification
ModelKy-300SF
Max size of board sideL800*W200mm
Min size of board sideL100*W30mm
Tape Max sizeL170*W170mm
Tape Min sizeL30*W30mm
Power/Voltage2kw/AC220V
Speed20-40pcs/min
Machine Dimension2200*900*1600mm
Weight400KG
