Book edge gilding machine 2021 version

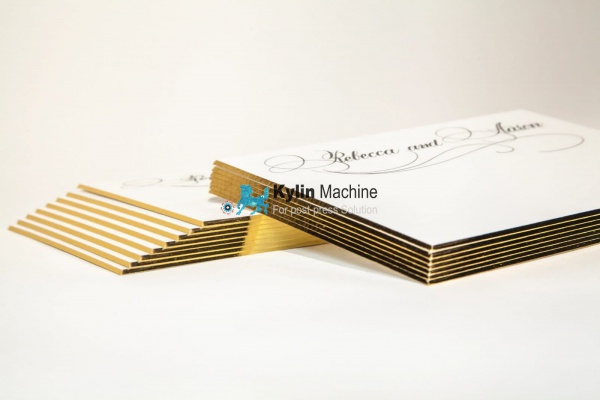

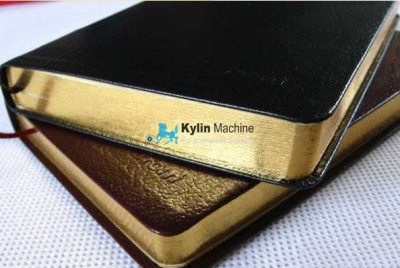

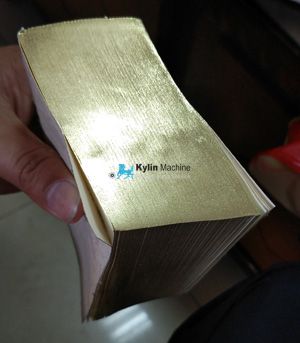

Book edge gilding machine is used for edge gilding of Notebook, Bible book, normal book ,etc, round corner gilding, simple process.
esay operated, sanding process and gilding process are all in one machines

Price Interview

Interview

Select the number of specifications

Please check the product information you want!

Machine Details Online Video Inquiry Now

Online Video

A-Z function : Clamping, Polishing, and Gilding process all in one machine

1, New Verson of 2020 year, PLC conctrol, high Accuracy, auto size change, PMMA edge lit panels Available
2,Sanding power by Electron, high power wind suction to collect the dust. 100% Environment protection. Easy operateion.
3, Feeder for the foil paper, Zero waste, 99% save for the cost of material.
4, The pressure of foiling is adjustable, suit for differernce kind of foil materials
5, The width of foil paper is difference, the foiling is good performance.
6, Auto Temperature sensititive, roller Self-Protection
7, Press the book block by air cylinder, the block can be retated
8, Round corner gilding.

book edge gilding machine 2021 version

Specification

Model	Ky-530A
Max size	420mmX420mm
Min size	50mmx50mm
Max height	100mm/deck
Gilding speed	3mins/ deck
Round gidling size	R8
Temperature range	0~260°C
Power supply	AC220V/50HZ
Power	0.93KW
N.W	160Kg
Machine dimension	125011001180mm

<a href="https://kylinmachinery533.wufoo.com/forms/z1ajjuuq06fmhz4/">Fill out my Wufoo form!</a>

No comment

Previous : Double-side adhesive tape applicator for foldable box Next : Collapsible boxes machine

Machine Details

Online Video

A-Z function : Clamping, Polishing, and Gilding process all in one machine

book edge gilding machine 2021 version

Specification

Model	Ky-530A
Max size	420mmX420mm
Min size	50mmx50mm
Max height	100mm/deck
Gilding speed	3mins/ deck
Round gidling size	R8
Temperature range	0~260°C
Power supply	AC220V/50HZ
Power	0.93KW
N.W	160Kg
Machine dimension	125011001180mm
