Bible book edge gilding machine

Edge gilding machine is specially design for note book, book, and diaries.

Kylin Edge gilding machine is similar to perfect book binding machine with clamps.
Books are held tightly with bottom and side register in clamp with a Hydraulic clamp machine Ky-

Price Interview

Interview

Select the number of specifications

Please check the product information you want!

Machine Details Online Video Inquiry Now

Online Video

Edge gilding machine is specially design for note book, book, and diaries.

Kylin Edge gilding machine is similar to perfect book binding machine with clamps.
Books are held tightly with bottom and side register in clamp with a Hydraulic clamp machine Ky-410-3

Grinding stations running in individual Sanding machine Ky-410-2, which has four stages with coarse fine and finer grades.
Book block finally de-dusted and polished with sanding papers in four difference density

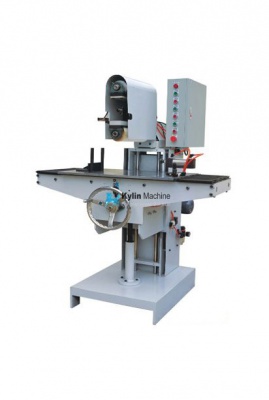

With Edge gilding machine Ky-410-1, gilding foil is transferred to block edge with controlled temperature and pressure.
No chemical or liquid is used in gilding process resulting in non sticky gilding. Books are released in hopper gently after gilding.
Mirror finished and non sticky gilding is achieved by continuous rotation at high speed gilding.

Bible book edge gilding machine

Specification

Model	Ky-410-1
Maximum Hot stamping width	390mm
Maximum Hot stamping length	390mm
Maximum Hot stamping height	390mm
Minimum Hot stamping height	65mm
Ares of working table(W*D)	580mm*500mm
Working Speed	2,500pcs/hour 41 pcs books/block gilding(10mm thickness/book)
Compress air source	1.5W, 70,000-90,000pa
Power supply	Three-phase four-wire AC, 380V, 2.4KW
Machine Diamension(LWH)	180cm 73cm179cm
Weight	480Kg
