Feature
Digital die cutting machine/Flatbed die cutting machine can be well applied to the cutting of pre-printed Paper sheets, PVC board and cardboard. The laser light positioning function can match the pre-printed marking points on the printed matter to achieve precise positioning and cutting. This model has the advantages of high positioning accuracy and easy operation. It can not only save a large number of knife mold costs, but also can be easily modified, and the sample can be produced quickly. Depending on the cutting material and application industry, it can also be called carton proofing machine, plastic box proofing machine, proofing machine, advertising cutting machine, etc.

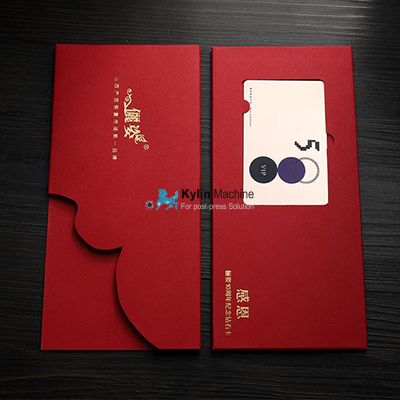

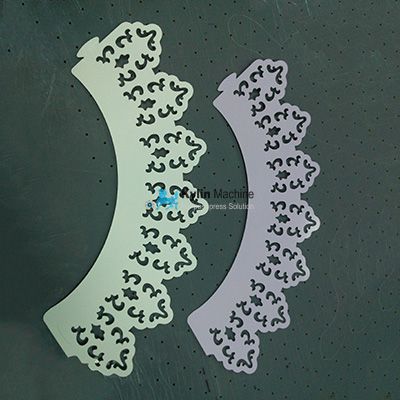

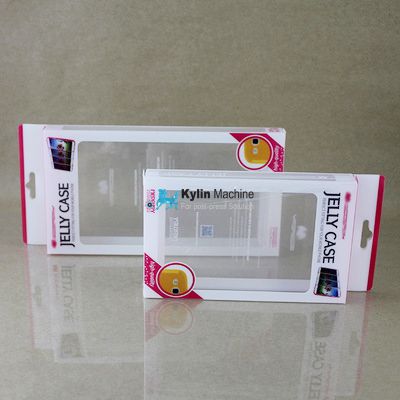

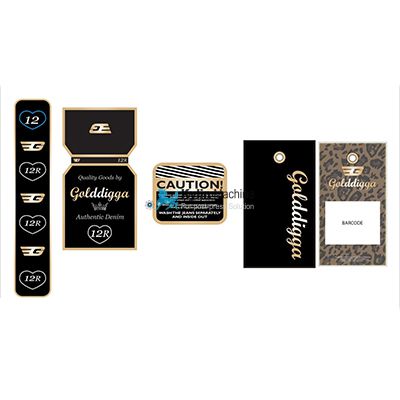

Applicated materials : Paper sheets, corrugated board, Cardboard, PVC / PET film, stickers, greeting cards, tags, etc.
Flatbed die cutting machine
Specification
| Model | ky-900 |
| Effective processing area | 900*600mm |
| Configuration | Pen, special knife, pressure roller, laser light positioning |
| Cutting Blade | Strokes, half-knife, full-knife |
| Applicated materials | Gray board, plastic board, white cardboard, kraft paper, thin PVC |
| Working speed | 1000mm/s |
| Transmission material | Steel belt |
| Adsorption method | vacuum |
| Driver | Stepper motor |
| Cutting thickness | 0.5-2mm |
| Accuracy | ≤0.1mm |
| Instruction system | International standards: HPGL or DXF |
| Working characteristics | Continuous operation, computer operation and cutting at the same time, fast data transmission at one time |
| Transmission port | International Standard: Parallel / Serial |
| Voltage | 220v±10% 50Hz |
| Fuse Specifications | 5A |
| Machine dimension | 1335*1065*1080mm |
| Machine weight | 500kg |
| Remark | Other sizes can be customized |
